Sub-flows

Some flow blocks can be used to create sub-flows. These blocks act as a boundary between the main flow and the sub-flow and are highlighted in pink in the flow editor.

warning

Contextual placeholders like the interaction placeholders of the main flow aren't available in the sub-flow and are replaced with the interaction placeholder of the sub-flow. Node results and temporary variables on the other hand remain available.

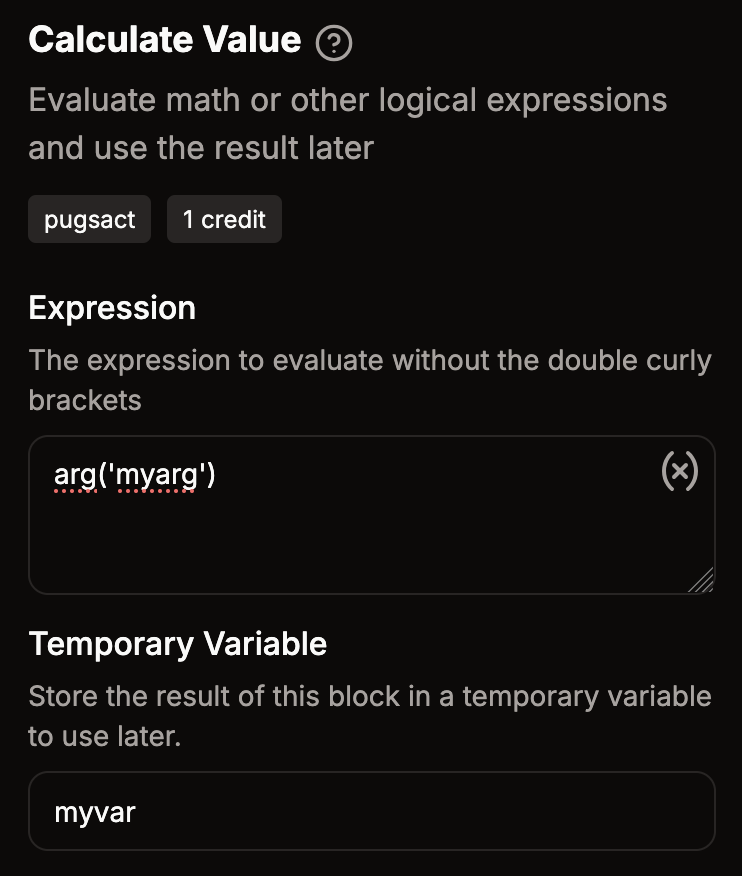

To work around this, you can use a Calculate Value block to create a temporary variable with the value of contextual placeholder before entering the sub-flow. This way you can still access the value in the sub-flow.

Show Example

Calculate Contextual Variable

Modals

Modal Node

Modals are a special type of sub-flow. They are used to create interactive experiences. When a modal is opened, the flow execution is suspended and the modal is displayed to the user. The flow execution is resumed when the modal is submitted. You can then access the results of the modal in the main flow using the interaction.components placeholder.

Modals can be used to create interactive experiences like forms, quizzes, etc.

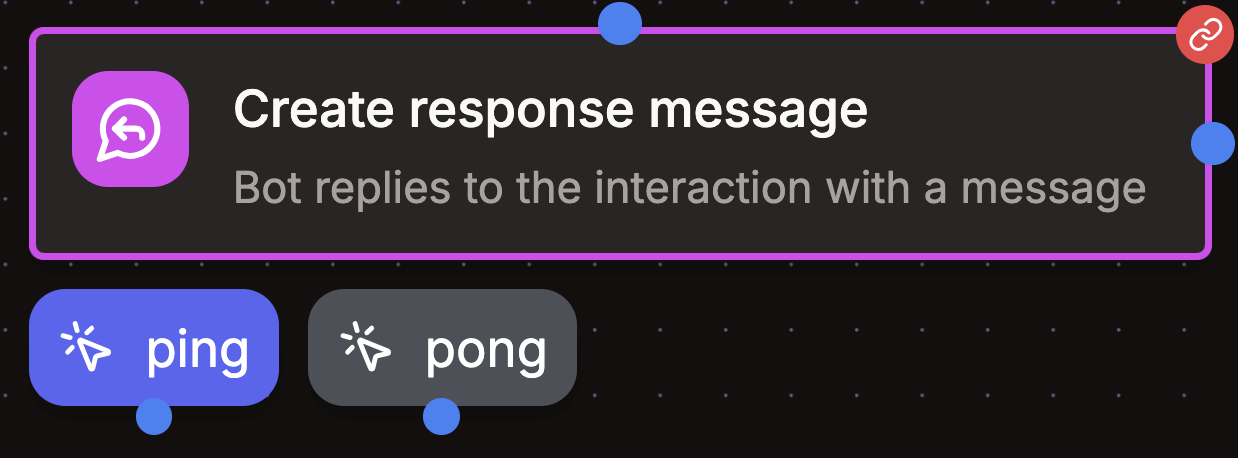

Interactive Messages

Interactive Message Node

When adding buttons to a message, the message becomes interactive. When an interactive message is sent and a user interacts with it, the execution resumes from the corresponding button in the flow. Just attach the blocks you want to each button.
